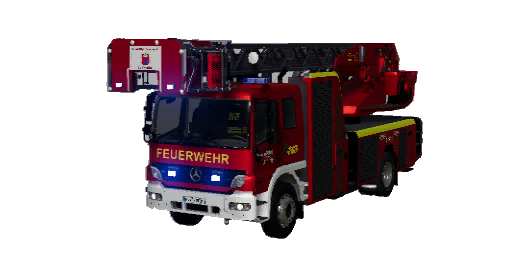

Automatic turntable ladder DLA (K) 23/12 (L32 XS 2.0) according to DIN 14043 of the Mühlheim an der Ruhr professional fire department, based on a Mercedes-Benz Atego 1529 F BlueTEC (Euro5) and a fire service expansion and expansion by Rosenbauer Karlsruhe GmbH & Co.KG from Karlsruhe.
The vehicle is stationed at the fire and rescue station 1 and forms an elementary part of the fire truck stationed there.
Technical data:
Chassis: Mercedes-Benz Atego 1529 F BlueTec (Euro5)
Engine: Mercedes-Benz OM 936
Engine type: 6-cylinder in-line diesel engine according to the “Euro5” emissions standard
Displacement: 6,374 cm³ Output
: 210 kW / 286 hp at 2,200 rpm min
torque: 1,120 Nm at 1,200-1,600 rpm
Transmission: Fully automatic
Empty weight: 14,460 kg
permissible total weight: 15,500 kg
permissible axle load (front / rear): 5,700 kg / 10,500 kg
Length: 10,020 mm
Width: 2,500 mm
Height: 3,270 mm
Wheelbase: 4,760 mm
Maximum speed: 100 km / h
Body builder : Rosenbauer Karlsruhe GmbH & Co.KG – 76185 Karlsruhe
Year of construction: 2017
Commissioning: 2017
Crew: 1/1 // 2
Structure:
Support:
4-way Metz horizontal support Vertical support
width: 2,500 to 4,850 mm
All supports individually and continuously extendable
supports with ground pressure
monitoring
Ladder chair with level control up to 14 ° (maximum inclination of the stand area) COMFORT main control station with reclining backrest and fold-out roof
Analogue load indicator (ABA) on the ladder set next to the main control station
Platform on the right for power generators and traffic cone Head set:
5-part ladder set with tiltable arm Fine-grain steel in anthracite gray, powder-coated
Working
height : 32 m, basket floor height : 30 m Lifting load on the load eye on the lowest ladder section: 4,000 kg, Lifting load on the load eye on the head of the ladder: 600 kg
Power supply to the rescue cage 24 V / 230 V / 400 V
2 LED headlights on lowest ladder section, adjustable
1 LED headlight strip under the lowest ladder section
Riser pipe in the uppermost ladder part and in the cage arm made of aluminum tube and flexible pressure hose at the transition between the top ladder part and cage arm and between the cage arm and rescue cage Rescue cage
:
Metz rescue cage with 500 kg load capacity (5 people) according to EN 14043
4 access options, 3 from the front and 1 from the rear , 3 entrances can be walked upright Control
station
2x LED work lights (Karl Meister – LED Power) on the sides of the basket
2x LED headlights on the front of the basket
Sockets 230 V / 400 V
holder for headlights,
stretcher holder and turning tube C pressure outlet on the front of the turning
tube Rosenbauer RM15, flow rate: 2,000 l / min, remotely controllable from the main control station and from the basket
Storage flap with C-hose and hollow jet pipe
Equipment:
Target storage, Target Memory System (TMS)
Vertical rescue system (VRS; the rescue
cage only moves vertically) Automatic return of the ladder set to the ladder rack, automatic return function (ARF)
emergency operation 400 V above Power generator
loading / equipment:
Reversing lights on the exterior mirrors
Reversing camera
traffic warning system consisting of 6 yellow FG Hänsch Sputnik SL at the rear and 2 yellow flashers FG Hänsch Integro Universal on the ladder
chair, ambient lighting
Power generator stretcher storage system
Kombi SKL, attached to the basket floor, payload: 300 kg
Voltage warning device on the ladder park.
